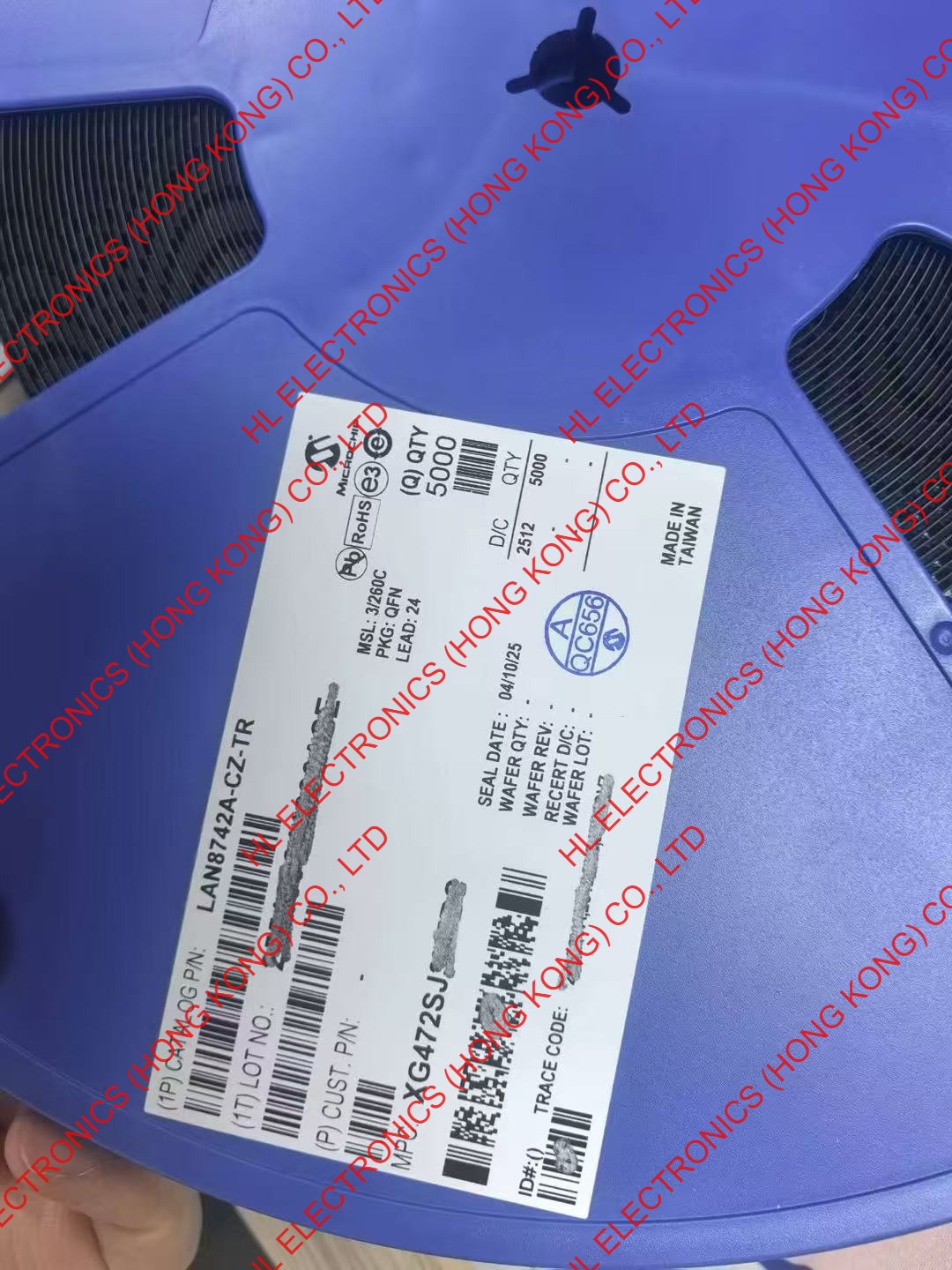

LAN8742A-CZ-TR MICROCHIP Drivers, Receivers, Transceivers

The LAN8742A-CZ-TR is a compact 10/100 Ethernet physical layer transceiver from Microchip Technology that supports RMII interface and integrates HP Auto‑MDIX, flexPWR technology, cable diagnostics and Wake‑on‑LAN functionality in a 24‑pin SQFN (4×4 mm) package. When selecting this device, confirm a single 3.3 V supply (I/O voltage 1.6 V to 3.6 V) and an operating temperature range of 0 °C to +70 °C (industrial variant available for –40 °C to +85 °C). Use a low‑cost 25 MHz crystal for the reference clock and verify that the host MAC supports the RMII interface. The internal 1.2 V regulator can be disabled to allow external power, reducing system consumption. Applications include set‑top boxes, network printers, digital televisions, gaming consoles, IP phones, wireless access points, digital video recorders, test and measurement instrumentation, industrial embedded systems, cable/DSL modems, PoE devices and telecommunications equipment. In stock at HL Electronics – request a quote for fast delivery.
