> PIC12F1822-E/SN

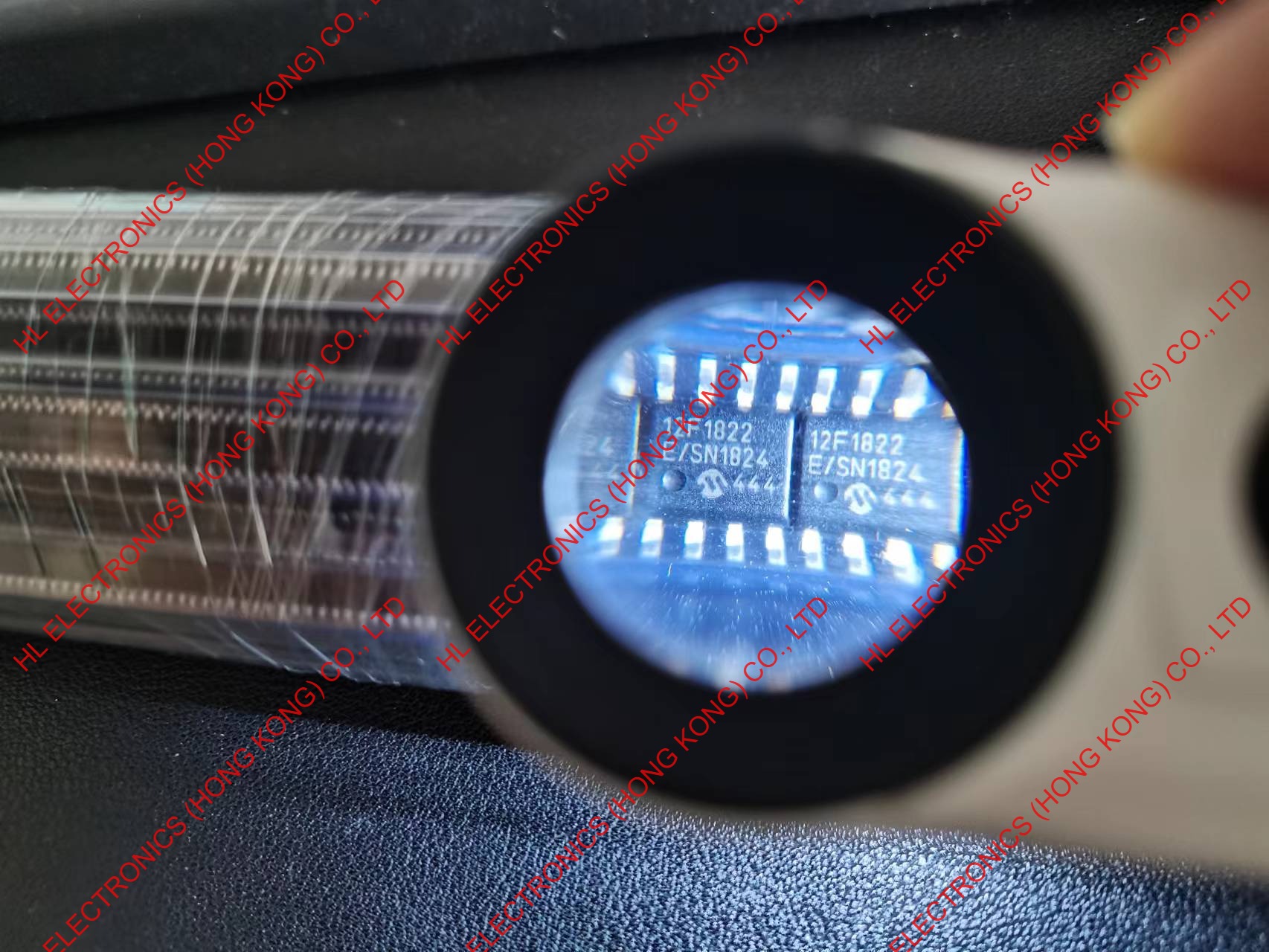

PIC12F1822-E/SN MICROCHIP Microcontroller
The PIC12F1822-E/SN is an 8‑bit enhanced mid‑range Flash MCU from Microchip featuring nanoWatt XLP technology, 3.5KB program memory, 128B RAM, and 256B EEPROM. For selection, verify supply voltage from 1.8V to 5.5V; ensure operating temperature from -40°C to +125°C for industrial‑grade reliability; note up to 32MHz internal oscillator, 6 I/O pins, 4×10‑bit ADC, 1×5‑bit DAC, 1×ECCP (PWM), and multiple communication interfaces (I2C, SPI, EUSART, LIN). Ideal for industrial control, automotive body electronics, consumer appliances, lighting control, IoT sensors, and battery‑powered portable devices requiring low power and robust functionality. In stock at HL Electronics – request a quote for fast delivery.
Pricing (USD)
| Quantity | Unit Price |
|---|---|
| 1+ | $ 0.88 |
| 100+ | $ 0.71 |
| 1000+ | $ 0.68 |
Technical Specifications
- Part No.PIC12F1822-E/SN
- Category Integrated Circuits (ICs) > Embedded > Microcontrollers
- Manufacturer Microchip Technology
- Packaging Tube
- Part Status Active
- Core Processor PIC
- Core Size 8-Bit
- Speed 32MHz
- Connectivity I2C, LINbus, SPI, UART/USART
- Peripherals Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O 6
- Program Memory Size 3.5KB (2K x 14)
- Program Memory Type FLASH
- EEPROM Size 256 x 8
- RAM Size 128 x 8
- Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
- Data Converters A/D 4x10b
- Oscillator Type Internal
- Operating Temperature -40°C ~ 125°C (TA)
- Grade Automotive
- Qualification AEC-Q100
- Mounting Type Surface Mount
- Supplier Device Package 8-SOIC
- Base Product Number PIC12F1822
- Features XLP, 16-Level Stack, 49 Instructions, 3 Timers, ICSP, Self-Programmable
- Moisture Sensitivity Level (MSL) 1 (Unlimited)
- RoHS Status ROHS3 Compliant
- REACH Status REACH Unaffected
- Lead Finish / Ball Material Matte Tin (Sn)
- ECCN 3A991A2
- HTSUS 8542.31.0001
- Standard Package 100
