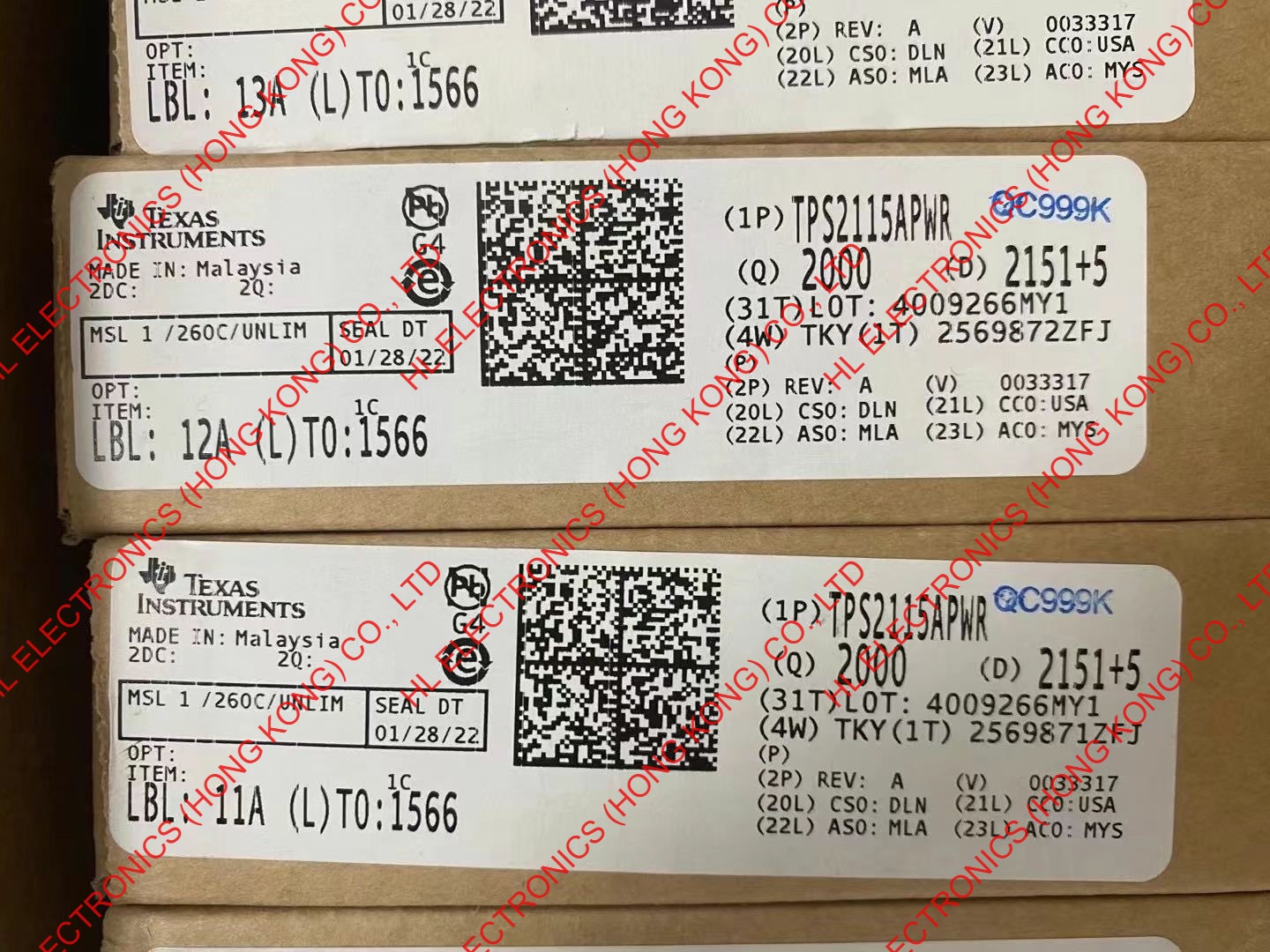

TPS2115APWR TI Diode

The TPS2115APWR is a power multiplexer (power MUX) from Texas Instruments, designed to automatically or manually select between two input power sources.For selection, ensure the operating input voltage ranges from 2.8 V to 5.5 V, with the output delivering up to 1.25 A.The device features an ultra-low on‑resistance (84 mΩ typ), a quiescent current of just 55 µA (max), and a shutdown current of 0.5 µA to preserve battery life.It also provides manual/auto‑switching, current limiting, inrush control, thermal protection, and reverse/cross‑conduction blocking.Applications include consumer electronics requiring seamless power source transition (battery vs. wall adapter), such as laptops, tablets, PC peripherals, digital cameras, and portable medical equipment. In stock at HL Electronics – request a quote for fast delivery.
